AITI Digital Touch Screen Motorized Welding / Column Frame Compression Testing Machine
The AITI Digital Touch Screen Motorized Welding / Column Frame Compression Testing Machine is a modern, user-friendly system designed for precise and efficient compressive strength testing. Featuring an intuitive digital touch screen interface, a smooth motorized loading system, and a durable welding / column frame compression structure, it provides accurate, repeatable results with enhanced operator convenience.
Ideal for construction laboratories, quality control facilities, and testing centers requiring reliable, high-performance compression testing.
Designed for practicality and performance, the system also offers a seamless upgrade path to full automation without replacing the core motor, pump, or control components – delivering both immediate usability and long-term adaptability.
- Specifically designed for easy mobility.
- Simple operation to minimize running cost.
- Precise spherical cap for optimum results.
- Motorized hydraulic power pack operation with ram rapid approach system.
- Single / twin load gauge 300mm diameter with maximum red pointer.
- Accuracy within ±1% error.
- Meet the standard of BS EN 12390 Annex A, BS 1881 – 115A, AS 1012 (optional) and any other international standards.
- Calibration traceability to BS EN 12390 Class 1.0, ISO 6507-1:2018 and ISO 75001:2018.
- Power : 220V ~ 240V, 50/60Hz, AC 1.0HP.
Available Capacity
Welding Frame Specification
| Model | ADA25/ELW | ADA50/ELW | ADA200/ELW | ADA300/ELW |
|---|---|---|---|---|
| Capacity | 250kN | 500kN | 2000kN | 3000kN |
| Approx Dimension | 420mm (L) x 420mm (W) x 1,205mm (H) | 515mm (L) x 540mm (W) x 1,165mm (H) | 565mm (L) x 540mm (W) x 1,210mm (H) | 705mm (L) x 600mm (W) x 1,340mm (H) |
| Approx Machine Weight | 330kg | 330kg | 760kg | 1200kg |
| Approx Packing Weight | 410kg | 410kg | 860kg | 1280kg |

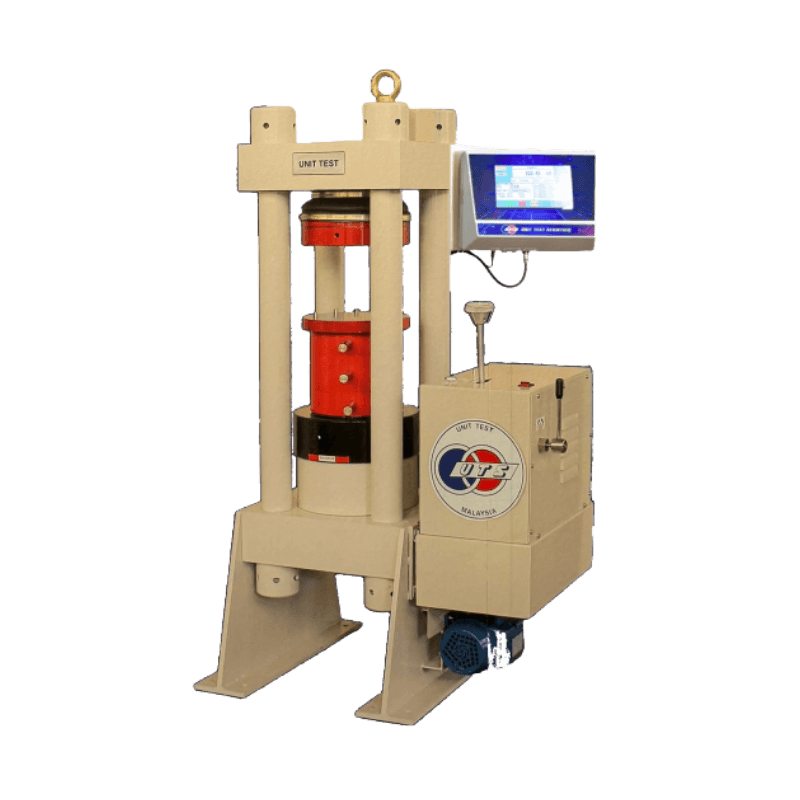

Column Frame Specification
| Model | ADA25/ELC | ADA50/ELC | ADA200/ELC | ADA300/ELC |
|---|---|---|---|---|
| Capacity | 250kN | 500kN | 2000kN | 3000kN |
| Approx Dimension | 420mm (L) x 420mm (W) x 1,245mm (H) | 420mm (L) x 540mm (W) x 1,165mm (H) | 500mm (L) x 560mm (W) x 1,270mm (H) | 645mm (L) x 600mm (W) x 1,440mm (H) |
| Approx Machine Weight | 360kg | 360kg | 650kg | 1270kg |
| Approx Packing Weight | 430kg | 430kg | 750kg | 1390kg |
