Digital Dual Speed CBR Tester (S25-DUAL)
( Soil Testing Machine )

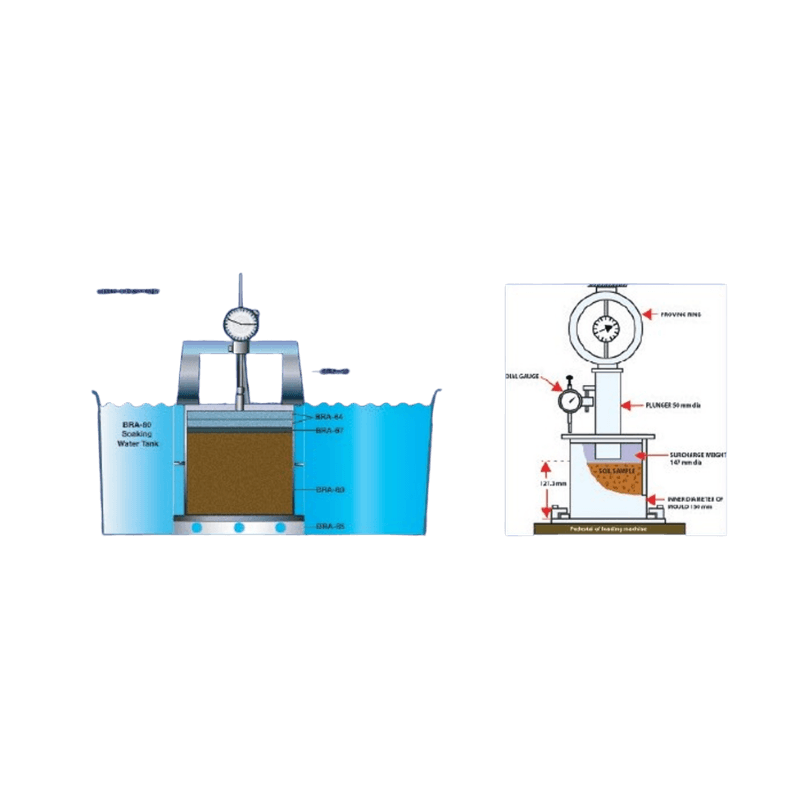

The Digital Dual Speed Semi-Automatic CBR Tester is a motorised bench-mounted machine designed for reliable California Bearing Ratio (CBR) testing. It combines digital measurement with semi-automatic operation, featuring two preset testing speeds compliant with BS and ASTM standards. With integrated digital load and displacement capture, it ensures accurate, repeatable and efficient laboratory soil strength evaluation.
- Semi-Automatic Operation – 50kN capacity, bench-mounted for laboratory use.
- Adjustable Test Speeds – complies with BS (1.0mm/min) and ASTM (1.27mm/min) standards.
- Rapid Platen Adjustment – quick forward / reverse control for specimen setup and release.
- Analogue Measurement System – supplied with 50kN proving ring, CBR plunger and analogue dial gauge.
- Semi-Automatic Loading – reduces manual effort while ensuring steady penetration.
- Durable & Reliable – proven mechanical system for repeatable and consistent test results.
- Follow standard :
- 1) ASTM D4429
- 2) BS 1377:9
- 3) BS 1924:2
- 4) UNI 10009
- Approximate dimension : 490mm (L) x 500mm (W) x 1,450mm (L).
- Approximate weight : 80kg.
- Approximate packing weight : 160kg.
Add on items :
- CBR mould.
- Computer set with Software
