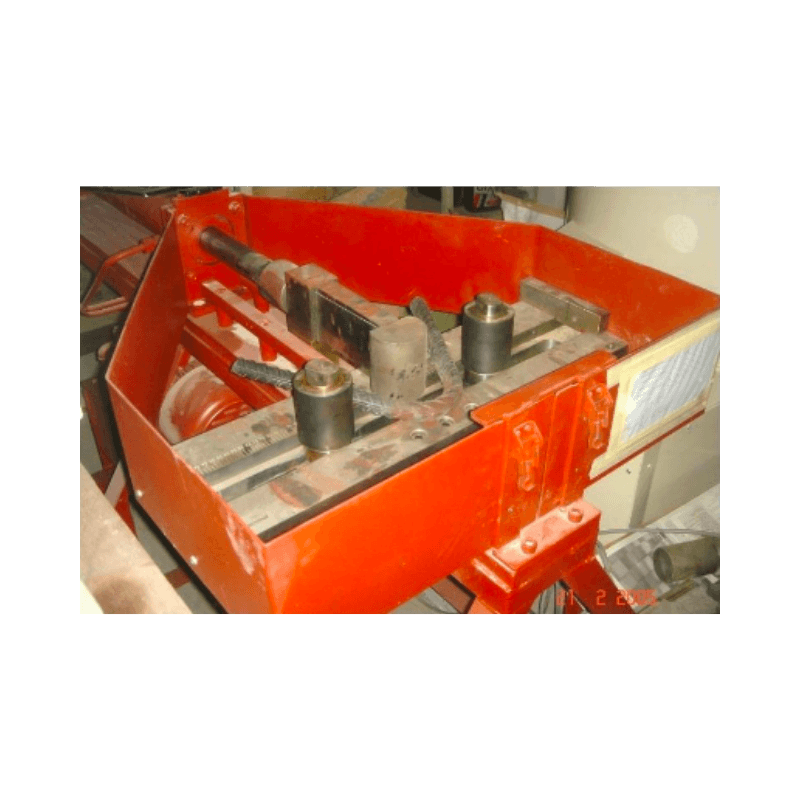

Horizontal Bending & Straightening Machine
( Steel Bar Testing Equipments )
The machine is distinguished by its high-precision mechanical machining capabilites: the end of the stem is tightly held in the axis by a guide with dovetail coupling in order to avoid distortion and dangerous buildups of elastic energy in the thrusting device; guide, roller bearing element and ram are bolted to the same machined beam.
The motor and the hydraulic components are sized for continuous working. The replacement of the tools presents no difficulty.
The series fittings comprise two roller couples (Ø70mm). Mandrels and, when required, mandrel supports can be selected from those described below
- Dimension : 2,250mm (L) x 1,500mm (W) x 1,400mm (H).
- Max ram load strength : 160kN.
- Thrusting head precision guide.
- Distance between the rollers adjustable from 46mm to 550mm.
- Hydraulic valve for speed adjustment.
- Pressure check gauge.
- Safeguard device in polycarbonate.
- Bench with shelves for accessories.
- Power : 415V, 3 Phase, AC 3.0HP.

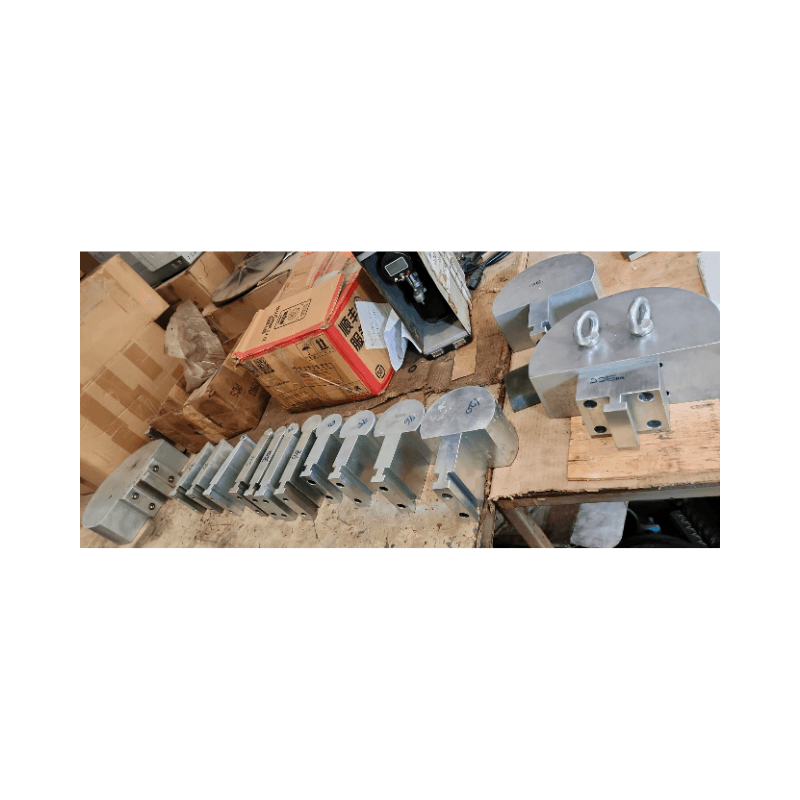

Mandrel Size for Bending & Rebending
Ø24mm x 90mm = Ø6mm round barØ32mm x 90mm = Ø8mm round barØ40mm x 90mm = Ø10mm round barØ48mm x 90mm = Ø12mm round barØ112mm x 90mm = Ø16mm round barØ140mm x 90mm = Ø20mm round barØ224mm x 90mm = Ø32mm round barØ280mm x 90mm = Ø40mm round bar
