Railway Sleeper
( Concrete Testing Equipment )

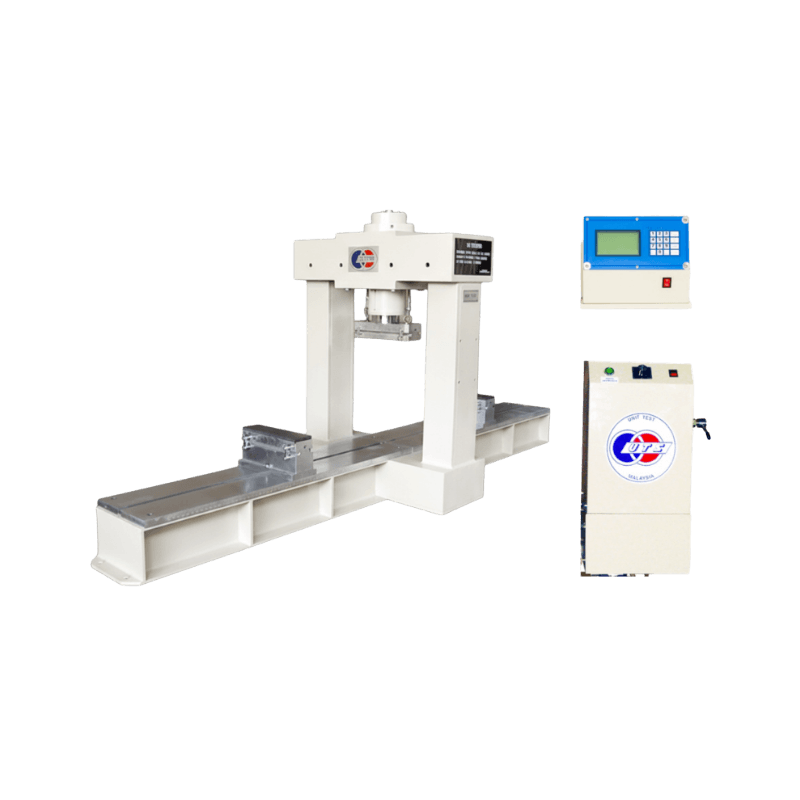

These machines are specially designed for testing and bending strength of concrete beam as well as all kind of refactory product providing that size is acceptable with machine clearance, also the machine can test concrete railway sleeper in pre-compressed to special standard requirement. The machine are fixed with DHR 2000 digital readout control console.
- Approximate dimension : 3,200mm (L) x 1,000mm (W) x 1,300mm (H).
- Max vertical clearance between top bearer to lower bearer : 290mm.
- Ram travel : 200mm
- Max clearance between lower bearer : 2,800mm.
- Top and lower bearer length : 330mm.
- Resolution : 0.1kN and 1.0 kN.
- Approximate machine weight : 1,600kg.
- Approximate packing weight : 1,700kg.
- Power : 220V ~ 240V, 50/60Hz, DC 1.0HP
General Specification
| Model | A-300 (AD) | A-600 (AD) | F-300 (Semi-Automatic) | F-600 (Semi-Automatic) |
|---|---|---|---|---|
| Capacity | 300kN | 600kN | 300kN | 600kN |
| Low Range Sensitivity (kN) | 0.1 & 1.0 | 0 – 400 x 0.1 | 0 – 300 x 0.1 | 0 – 400 x 0.1 |
| High Range Sensitivity (kN) | - | 400 – 600 x 0.1 | - | 400 – 600 x 0.1 |
